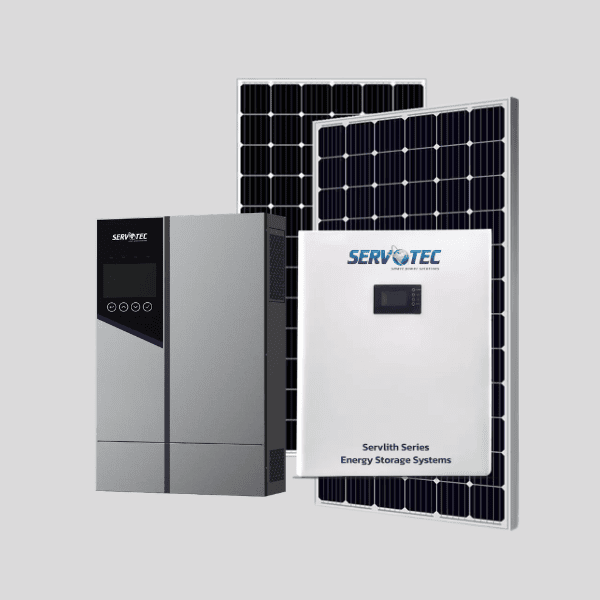

5 KW Hybrid Solar System Servotec

The Servotech 5kW Hybrid Solar Power System is a robust energy solution that integrates high-efficiency bifacial solar generation with advanced 48V power management. This configuration uses the 7.5kVA Sparkle Series Hybrid Inverter and a 4.8kWh Servlith Lithium Battery to provide a high-surge, reliable power buffer for homes and small offices.

Solar Generation: 5.5kW High-Performance Array

• Modules: 10 x 550W Servotech Mono PERC Half-Cut panels.
• Bifacial Advantage: These panels capture sunlight from both sides, providing up to 25% extra yield from reflected light.
• Durability: Engineered with IP68 protection and a 25-year performance warranty to ensure long-term energy independence.

Energy Hub: 7.5kVA (48V) Sparkle Hybrid Inverter

• Capacity: Rated for 6.5kW continuous output with a massive 12kVA surge capacity for starting heavy loads like 2-ton ACs.
• Solar Charging: Features a built-in 120A MPPT solar charger with a wide input range of 60V–450V DC.
• DC Input Stability: Optimized for a 48V DC battery system with a maximum PV input power of 9000W.
• Grid Interaction: Supports bidirectional power flow, allowing for Net Metering and grid export of excess energy.

Advanced Storage: 4.8kWh Servlith Lithium Battery

• Chemistry: Uses safe Lithium Ferro Phosphate (LiFePO4) cells with a nominal 48V (ST-SL4810 model) architecture.
• Performance: Rated for 5,000+ cycles at 100% Depth of Discharge (DoD), offering a lifespan of over 10 years.
• Smart BMS: Integrated management system protects against over-charge, over-discharge, and short circuits while communicating directly with the inverter.
• Voltage Range: Operates within a 40V–58.4V DC range, perfectly synchronized with the Sparkle inverter's charging profile.

System Performance

• Daily Yield: Generates an average of 25–28 units (kWh) per day.
• Load Support: Seamlessly runs high-surge appliances including ACs, water pumps, and refrigerators during power outages.
