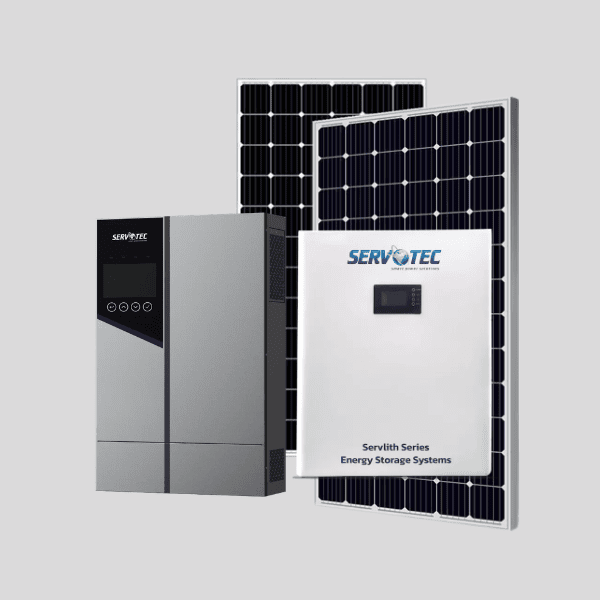

Servotech 4.4kW Hybrid Solar System: 5kVA (25V) Inverter + 5kWh Lithium

This high-capacity powerhouse pairs 4.4kW of Bifacial solar generation with a heavy-duty 5kVA (25V) hybrid inverter and an expanded 5.12kWh Lithium storage bank (2 x 2.5kWh modules) for extended backup and heavy-load resilience.

1. Solar Generation: 4.4kW Bifacial Array

• Modules: 8 x 550W Servotech Bifacial Mono PERC Half-Cut panels.
• Dual-Sided Gain: Advanced 144-cell technology captures reflected light for up to 25% extra energy yield.
• Peak Output: High 21.28% efficiency ensures maximum harvest even during partial shading.

2. Power Conversion: 5kVA (25V) Hybrid Inverter

• Rating: 5kVA / 4kW Continuous Output (Pure Sine Wave) with high-current MPPT.
• System Voltage: Optimized for 24V/25.6V DC parallel battery architectures.
• Surge Power: Industrial-grade overhead to run 1.5-ton ACs, pumps, and refrigerators simultaneously.
• Intelligence: Bidirectional flow; supports Net Metering for full grid synchronization and export.

3. Energy Storage: 5.12kWh Servlith Battery Bank

• Units: 2 x 2.56kWh (25.6V 100Ah) LiFePO4 modules connected in parallel.
• Lifespan: 5,000+ Charge Cycles (approx. 10–12 years) with 90% Depth of Discharge.
• Rapid Recovery: The 4.4kW solar array can fully recharge this 5kWh bank in ~1.5 to 2 hours of peak sun.
• BMS: Dual Integrated Smart Management for synchronized thermal safety and cell balancing.

4. Key Technical Aspects

• Daily Yield: 20–24 Units (kWh) average; ideal for eliminating high electricity bills.
• Backup Capacity: ~5 Units (kWh) stored energy for extended night-time or emergency use.
